Piercing Punch / Toolings for lamination / PCB / Blanking

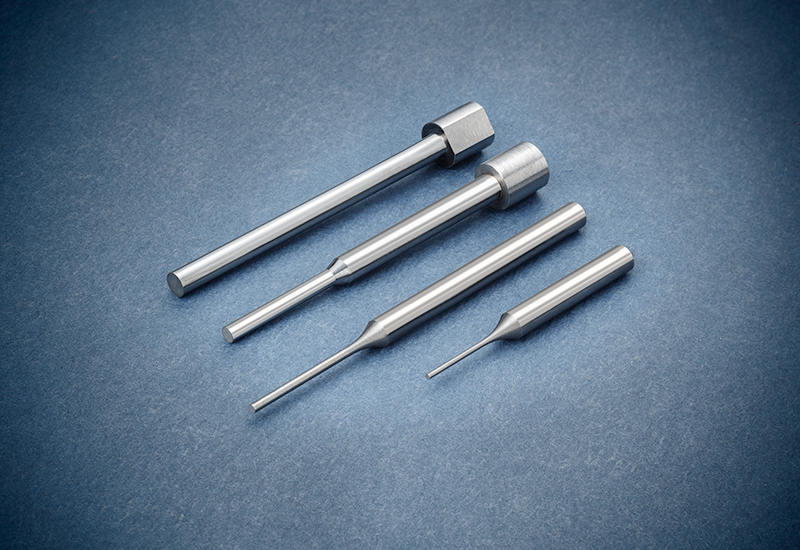

• Wide range of High quality Piercing punch which are strong enough so that repeated shock in operation will not cause fracture ultimately results in longer tool life. (Diameter Range from 1mm with Geometrical Accuracy within +/-0.002mm.
• Blanks for lamination toolings/PCB's/sheet metal Stamping.
• Grades with excellent chipping resistance and high fracture toughness, which exerts remarkable effect on process even under severe conditions.
• Blanks for Hobs and Skiving Hobs as per Customer Drawing.

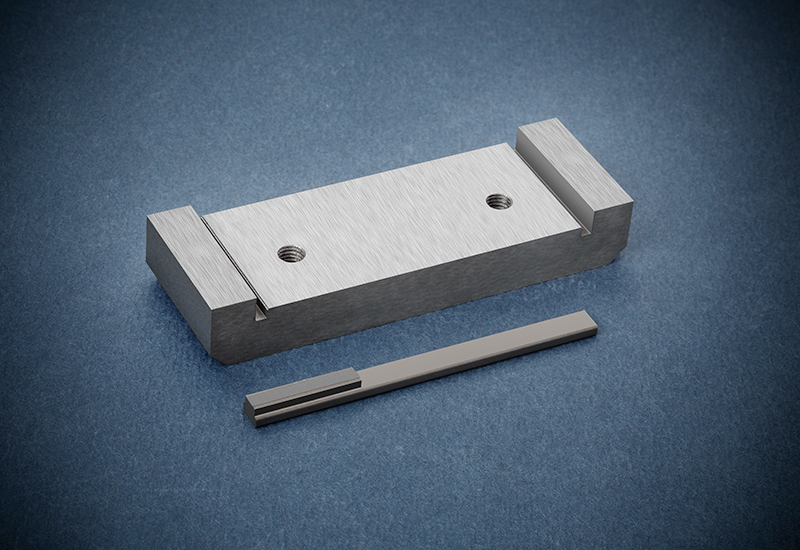

• Ready to press drilled and tapped blocks with center distance controlled between +/- 0.15mm in Sintered Condition.

---

Special Features

• Chipping Resistance
• High fracture toughness
• Wear Resistance
• Direct Tapping in Sintered condition
• Ready to Press
• Stepped Punches
• Punch-OD maintained with in 0.002mm

---

Available As

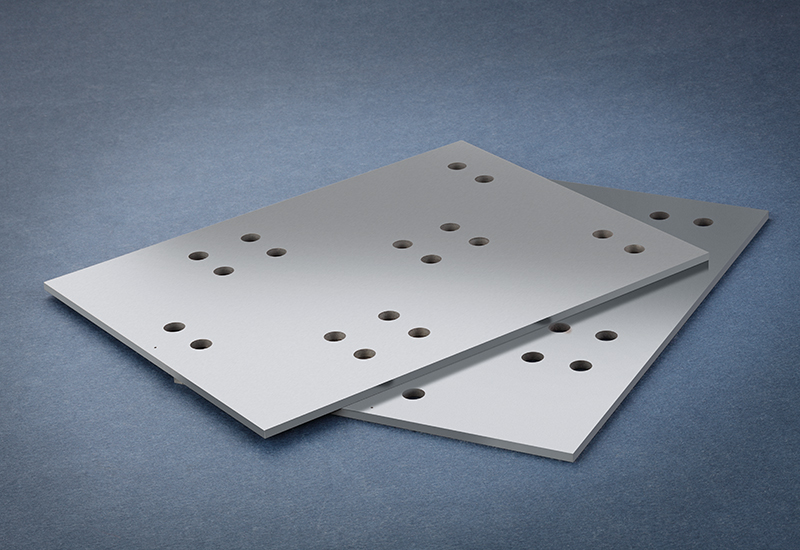

• Sintered Plates
• Pre-formed Plates and Punches
• Ground
• Finished

---
